Welcome to the world of twisted wires and Ethernet cables, where science meets connectivity! Have you ever wondered why those cables with jumbled-up wires are so effective at transmitting data? In this blog post, we’ll delve into the fascinating realm of Unshielded Twisted Pair (UTP) and Shielded Twisted Pair cables, unraveling the mystery behind their design and how they combat electrical interference. So grab your coffee and dive into the science behind twisted pairs!

Reducing Electrical Interference

By understanding the science behind twisted wires in Ethernet cables, we can see how crucial it is to choose the right cable type for our networking needs. Unshielded Twisted Pair (UTP) and Shielded Twisted Pair (STP) cables offer different levels of protection against electromagnetic interference (EMI) and crosstalk.

The twists in the pairs of wires cancel out differences in their electromagnetic fields by reversing the conductors’ polarity at every twist.

Additionally, some pairs have more twists per inch and less on others. This is very deliberate and designed to prevent different pairs from interfering with the other pairs in the same cable. If all four pairs were twisted together similarly, they would interfere with each other, causing excessive crosstalk.

When setting up a network, it’s essential to consider factors that could introduce electrical interference and disrupt signal transmission. By using STP cables in environments with high EMI sources or opting for properly shielded connectors, you can significantly reduce the impact of external interference on your network performance.

Remember, selecting the appropriate twisted pair cable and taking measures to minimize electrical interference will ensure reliable data transmission and optimal network efficiency. Stay informed about the latest advancements in cable technology to make informed decisions when building or upgrading your network infrastructure.

Unshielded Twisted Pair

Unshielded Twisted Pair (UTP) cables are the unsung heroes of networking, commonly found in homes and offices for their reliable data transmission capabilities. These cables consist of twisted pairs of copper wires without additional shielding, hence the name UTP. The twisting pattern helps reduce electromagnetic interference (EMI) and crosstalk, where signals from adjacent wires interfere.

Despite being more susceptible to external interference than shielded cables, UTP remains a popular choice for its cost-effectiveness and flexibility. Its design allows easy installation and maintenance, making it ideal for everyday networking. With various categories like Cat5e, Cat6, and Cat7 offering different performance levels, UTP cables are a go-to solution for Ethernet connections worldwide.

Next time you plug in your device or connect to Wi-Fi, remember that behind the scenes lies the simple yet ingenious technology of Unshielded Twisted Pair cables, which keep your data flowing seamlessly.

Shielded Twisted Pair

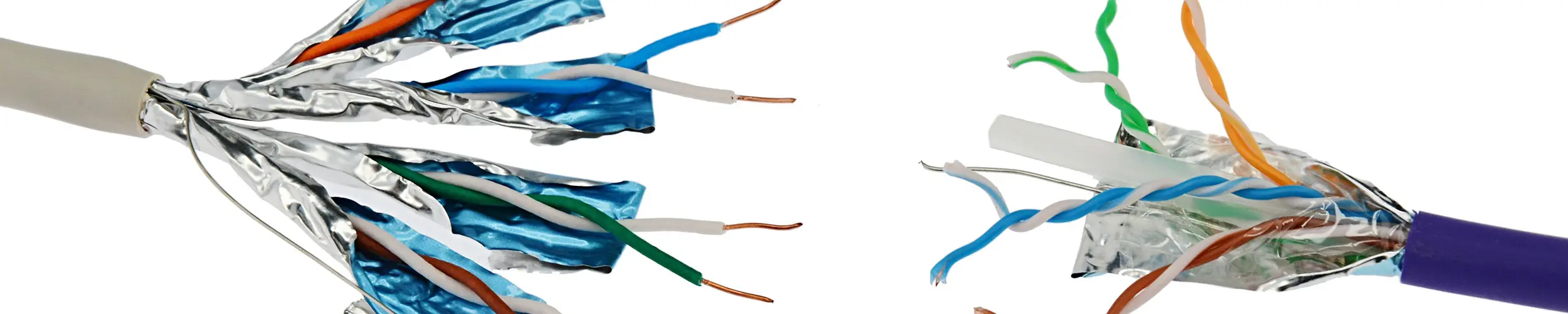

Have you ever wondered how shielded twisted pair (STP) cables work magic in networking? Unlike unshielded twisted pair (UTP) cables, STP cables are wrapped in metallic foil or braided shielding to protect against electromagnetic interference (EMI).

The shield acts as a barrier, blocking external signals from disrupting the data traveling through the wires. This protection is especially crucial in environments with high electrical noise levels.

STP cables are often used in industrial settings or areas with significant EMI sources, such as power lines or machinery. By incorporating this extra layer of defense, STP cables ensure cleaner and more reliable data transmission.

Shielded twisted pair cables minimize EMI and help reduce crosstalk—the unwanted transfer of signals between adjacent wires. With STP technology, network performance remains stable and secure even in challenging conditions.
